Henri Roux’s 1823 Patent: Improvements to Pauly’s Gun Design

Description

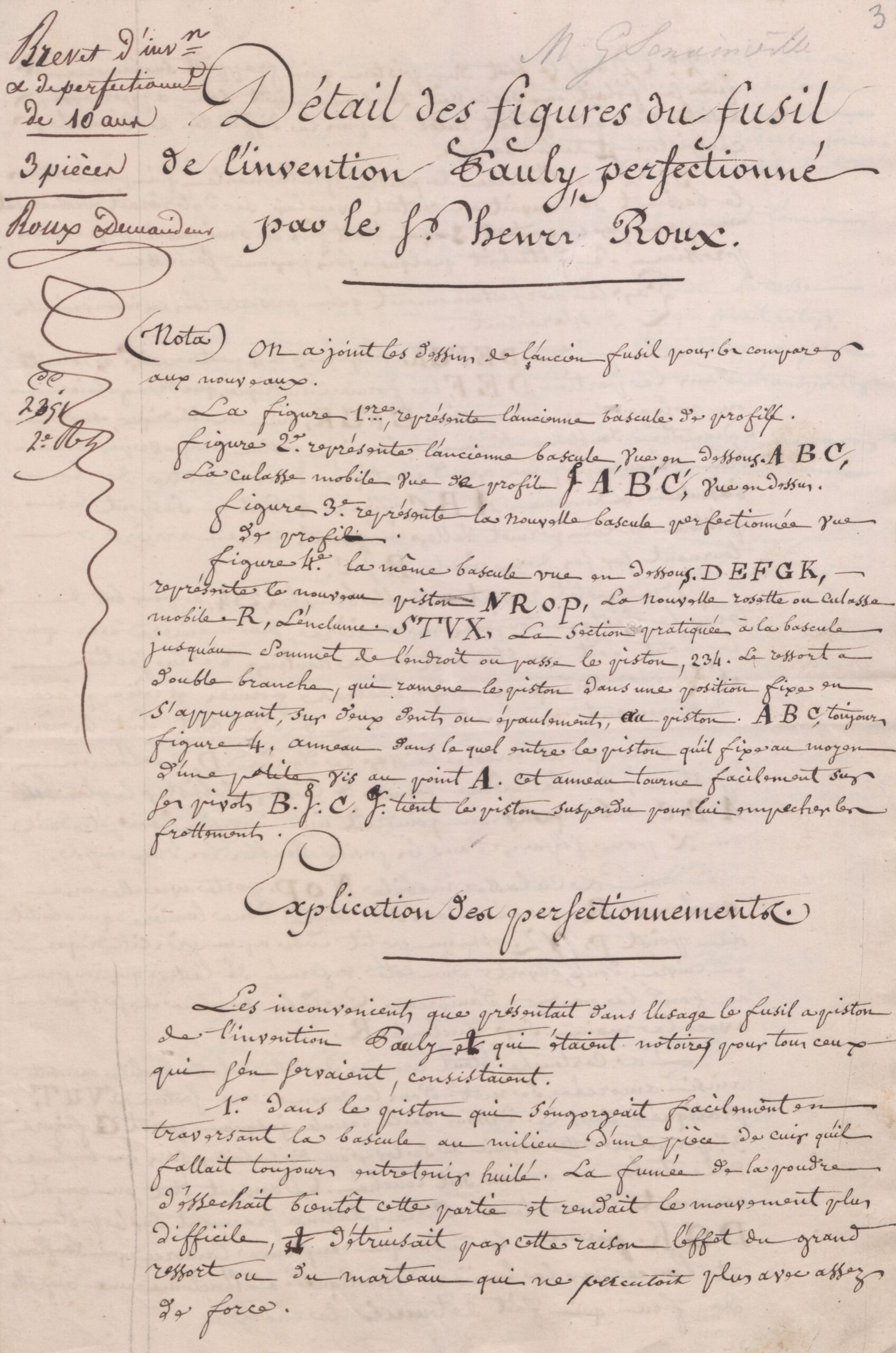

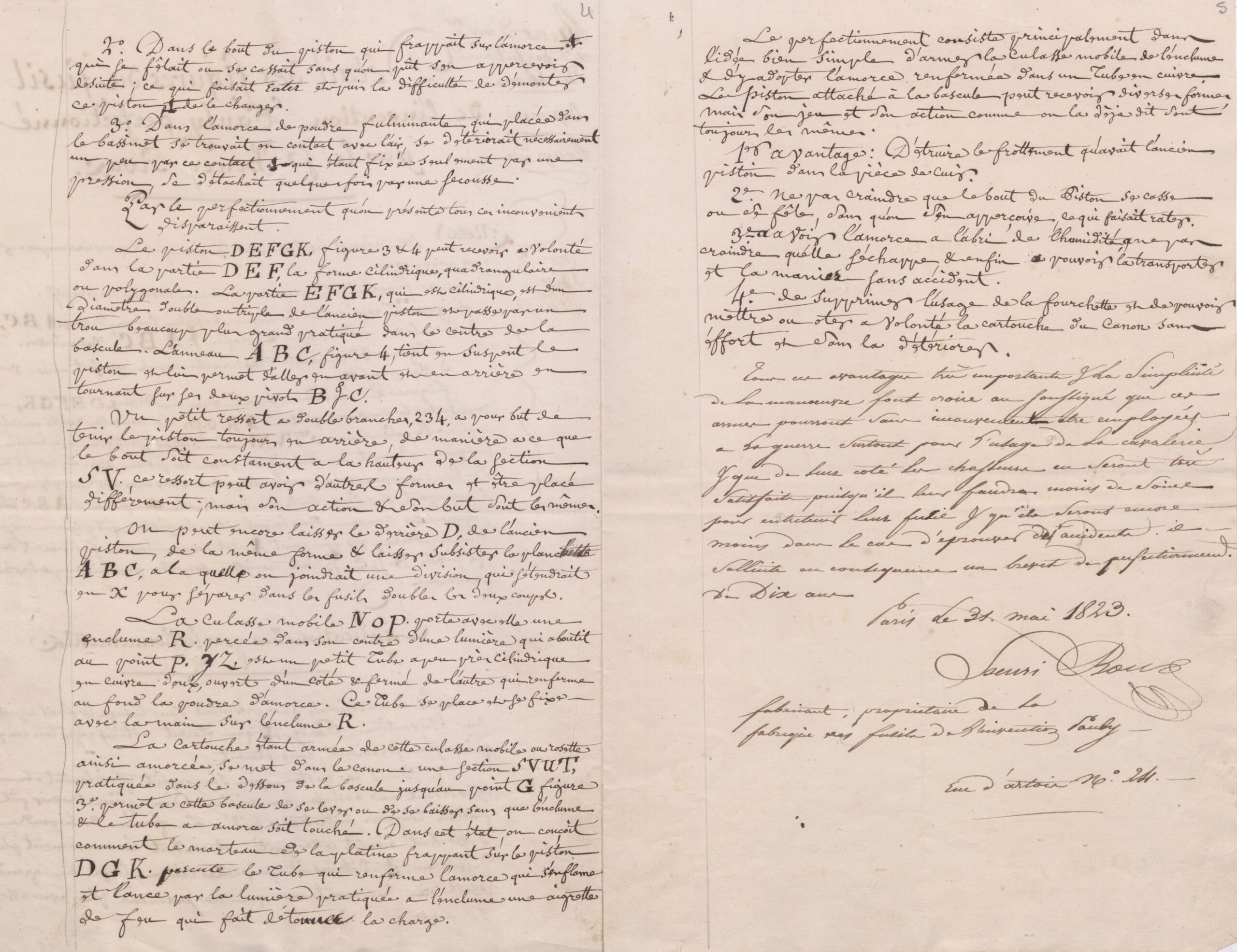

On June 26, 1823, Henri Roux submitted a detailed patent for substantial improvements to Jean Samuel Pauly's groundbreaking gun design. This patent, officially recorded with the French Ministry of the Interior, provides an in-depth look at Roux's innovative modifications aimed at enhancing the performance, reliability, and ease of maintenance of Pauly's original firearm. The patent application is comprehensive, featuring both descriptive text and intricate technical drawings that meticulously illustrate Roux's advancements.

Henri Roux's enhancements primarily focused on optimizing the gun's internal mechanisms to address common operational challenges. A key characteristic of Roux's patent was the redesign of the breech to accept and use cartridges with a nipple at the end. These new cartridges were designed to accept a common percussion cap, a significant departure from Pauly's older-style cartridges, which used a separate priming compound on the base of the cartridge. This modification significantly improved the reliability and ease of use of the firearm, making it more practical for both military and civilian applications.

The new design allowed for more efficient and consistent ignition of the gunpowder, reducing the likelihood of misfires and simplifying the reloading process. The introduction of the percussion cap system was a major advancement, as it provided a more reliable and safer method of ignition compared to the earlier systems.

In addition to the breech redesign, Roux introduced new piston designs and an improved trigger mechanism. These modifications were aimed at preventing issues such as fouling, which often plagued early firearms, and reducing the need for frequent lubrication, thus making the gun more reliable and easier to maintain.

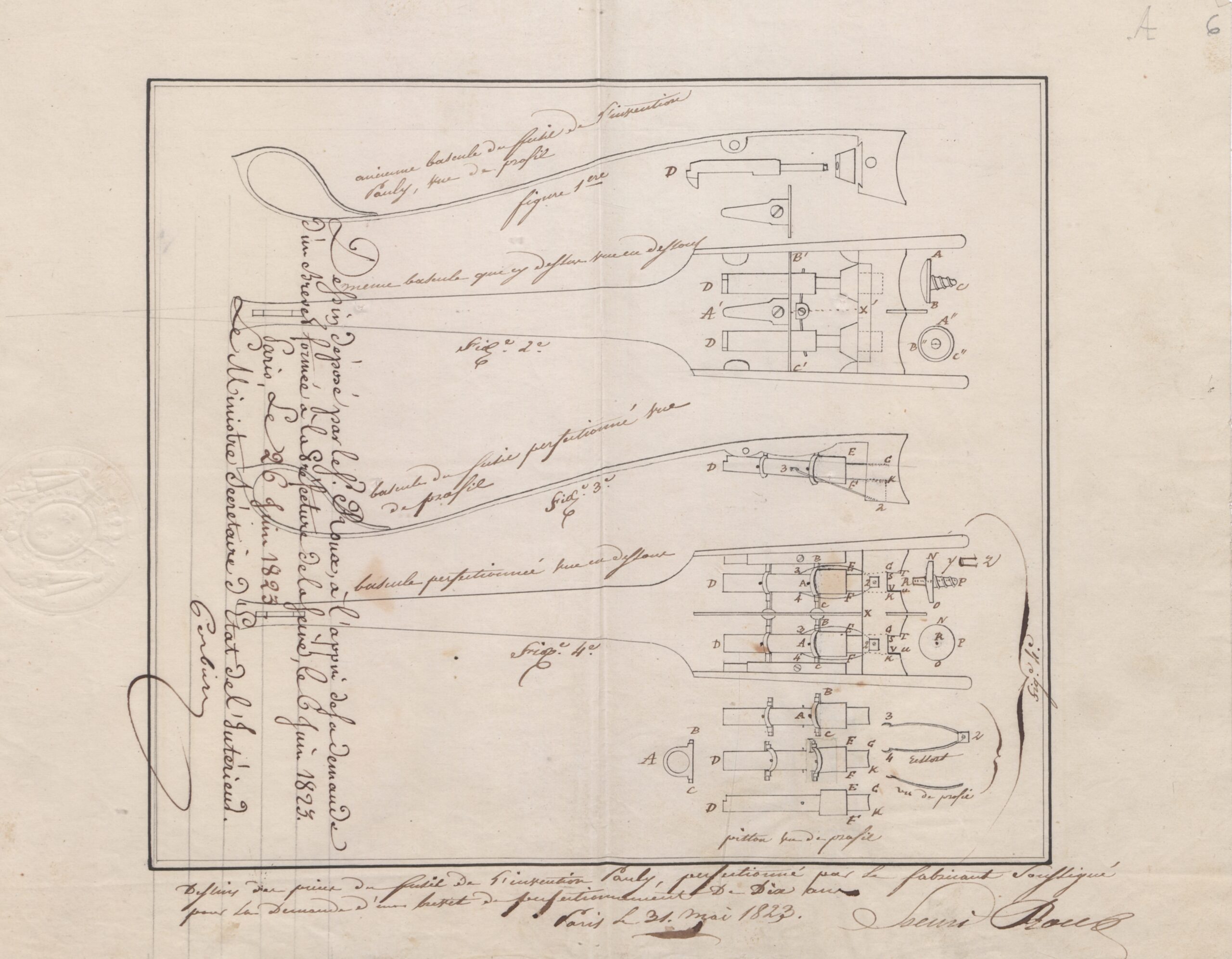

The detailed technical drawings included in the patent provide a visual representation of Roux's modifications. These illustrations depict the new piston designs, showing how they were intended to provide more consistent and reliable firing. The improved trigger mechanism is also detailed, highlighting how Roux's design aimed to increase the firearm's accuracy and overall performance. Additionally, the patent describes changes to the breech-loading system to enhance its functionality and user-friendliness.

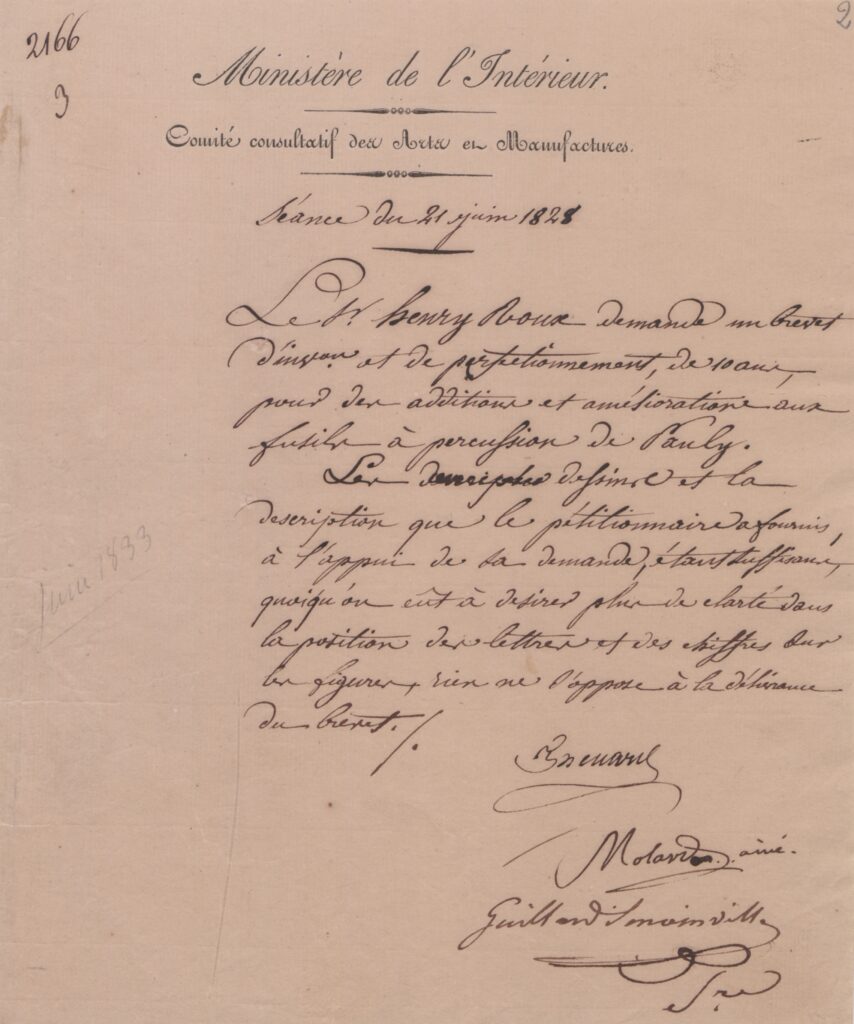

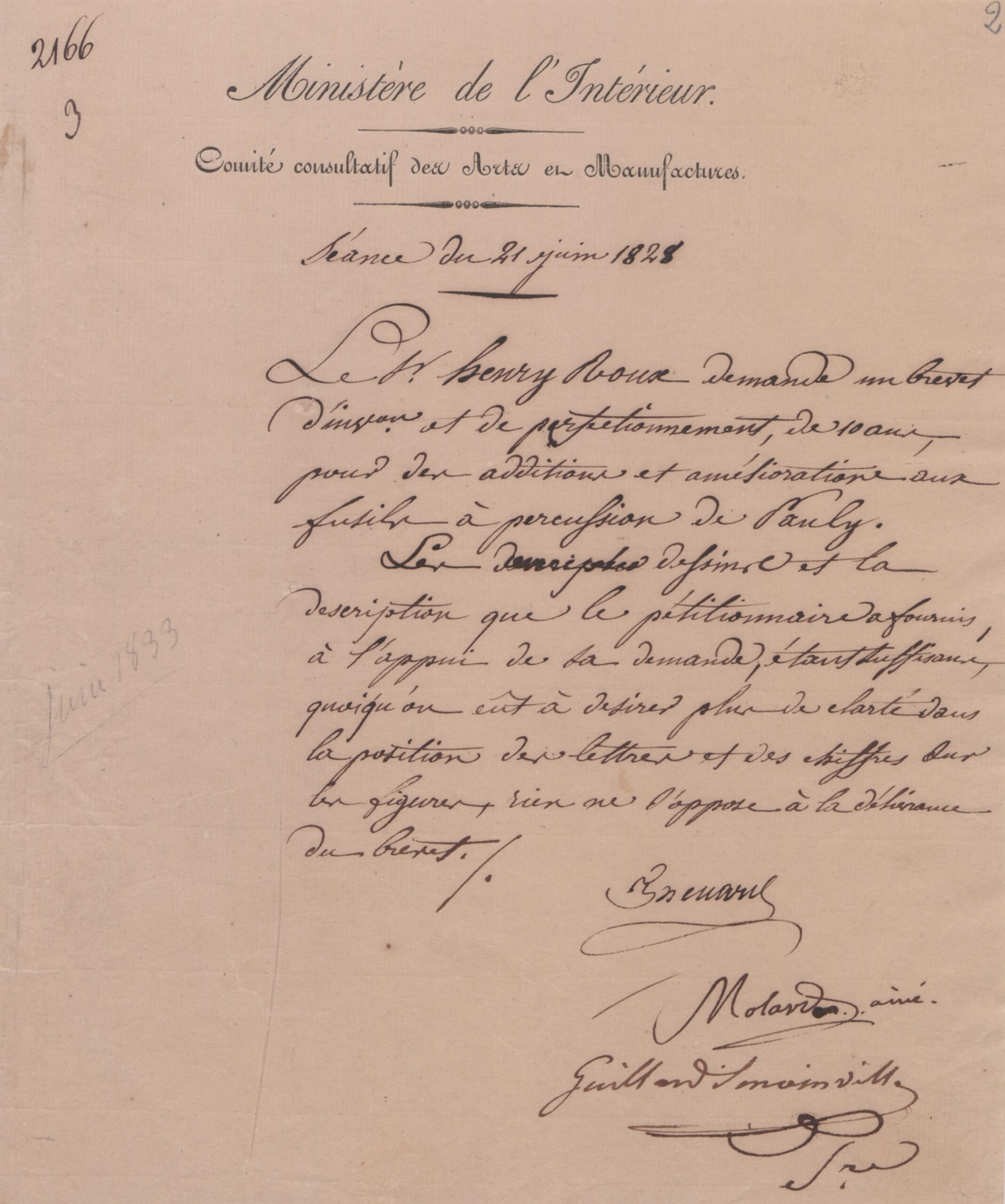

The patent document itself is a historical artifact of significant value, featuring original handwriting, official stamps, and signatures from the French Ministry of the Interior. This meticulous documentation offers a fascinating glimpse into the technological and bureaucratic processes of the early 19th century, providing insight into the rigorous standards and expectations for patent submissions of the time.

Jean Samuel Pauly, originally from Switzerland, had made significant contributions to firearms technology with his early breech-loading designs. His innovations were pivotal in the development of modern firearms, and his move to England and later to France allowed him to continue influencing advancements in the field. Henri Roux's 1823 patent represents a critical step in this lineage, showcasing how continuous improvements and collaborative efforts among inventors were essential for technological progress.

Roux's improvements were not just technical; they also addressed practical issues faced by users. For instance, the patent outlines how the new piston designs prevented fouling, a common problem that occurred when gunpowder residues accumulated, causing the gun to malfunction. By introducing a more effective sealing mechanism, Roux ensured that the gun could maintain its performance over extended periods without requiring frequent cleaning and lubrication.

Furthermore, Roux's modifications to the trigger mechanism were aimed at increasing the precision and reliability of the firearm. The improved trigger design reduced the likelihood of misfires and provided a smoother, more consistent action, which was crucial for both military and civilian applications. These enhancements made the gun more user-friendly and dependable, paving the way for further refinements in firearm technology.
